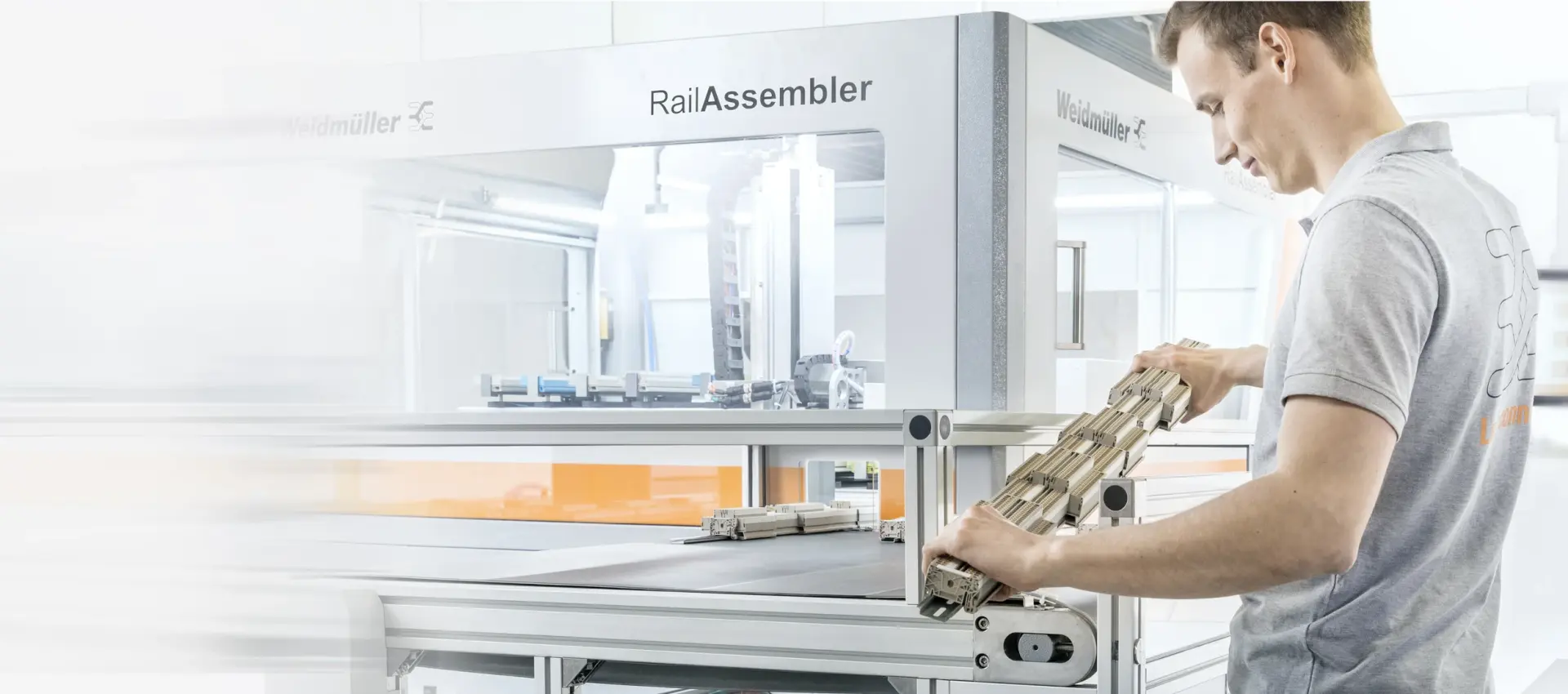

Klippon® Automated RailAssembler

Fast and reliable rail assembly

The Klippon® Automated RailAssembler, in combination with the Weidmüller Configurator (WMC) software, enables the fully automatic assembly of terminal rails. The use of the automated system eliminates the need to pick, allocate and position individual terminals. As a result, time savings of up to 60% can be achieved during the assembly process - and even more when considering the unmanned operation of up to 7 hours.

Your advantages with our Klippon® Automated RailAssembler

Efficiency increase of up to 60%

The Klippon® Automated RailAssembler offers considerable optimization potential. It enables you to achieve up to 60% faster assembly with 100% planning reliability.

Easy handling

Its innovative design approach allows easy handling through universal magazines and thus ensures significant increases in productivity.

Quality through data consistency

Avoidance of incorrect assembly due to the consistent use of data from eCAD programs when using the Weidmüller Configurator (WMC).

Gain a competitive edge with innovative technology

With the Klippon® Automated RailAssembler, picking, assigning and positioning, snapping on and viewing of the individual terminal blocks is a thing of the past. Taking into account different circumstances and initial situation the Klippon® Automated RailAssembler allows time savings of up to 60%.

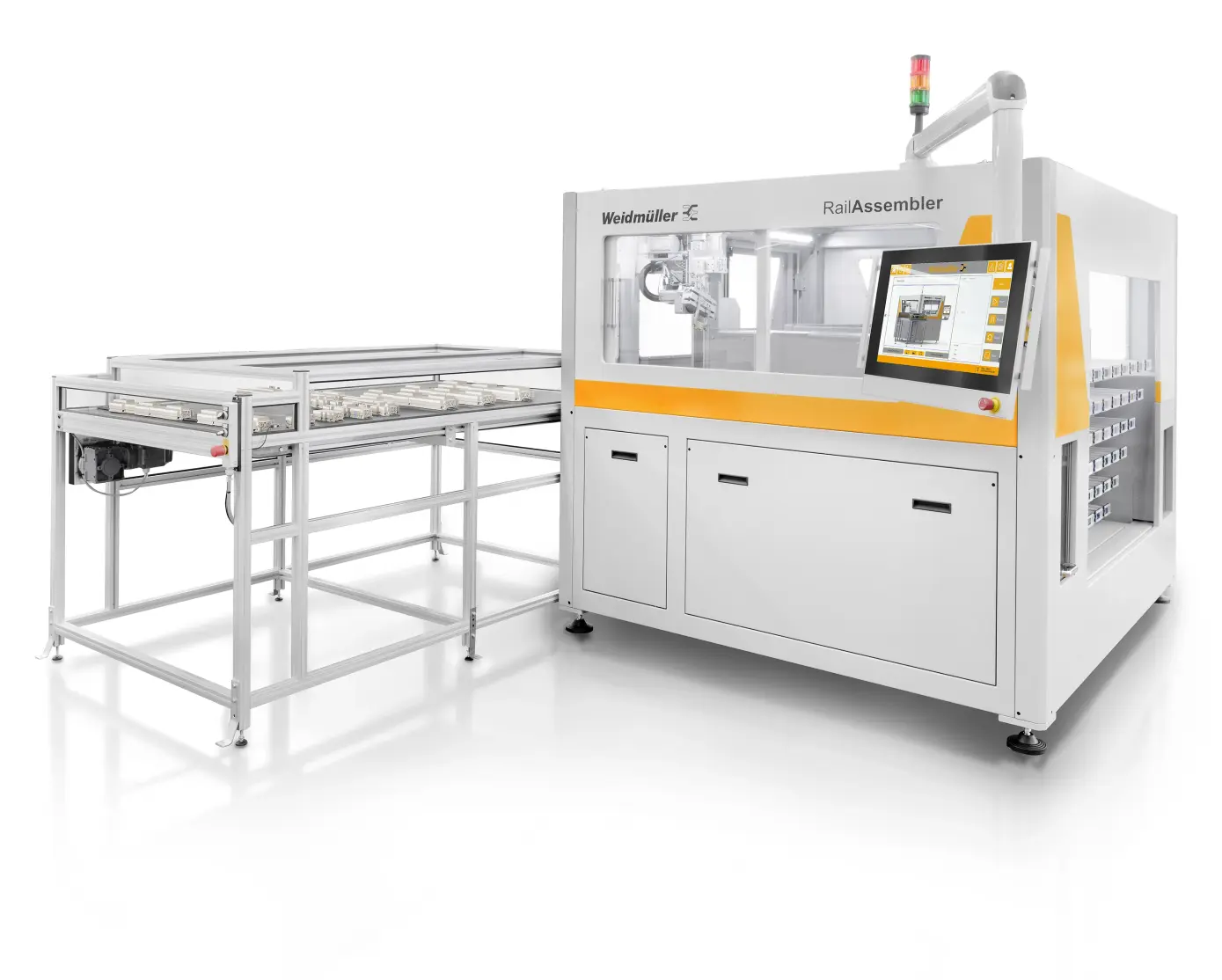

Explore our Klippon® Automated RailAssembler

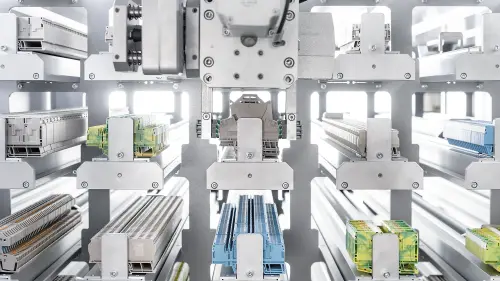

Contour robust gripper

Due to the adaptive gripper even complex component geometries can be handled robustly. Thus, the application range of the machine is maximized.

Reliable quality

Based on the Weidmüller Configurator, the continuous use of planning data from e-CAD programs is possible. The elimination of manual production steps minimises potential errors.

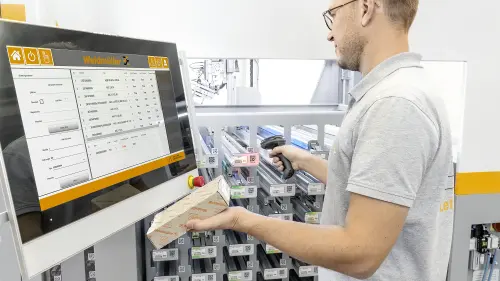

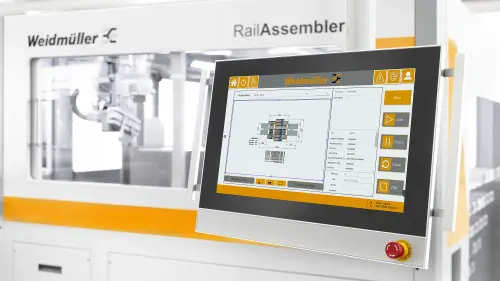

Consistent transparency

The consistent software support during all work steps assists the worker and enables transparency of the order status. This guarantees a minimum error rate coupled with maximum efficiency.

Fast high-precision marking - Klippon® Automated RailLaser

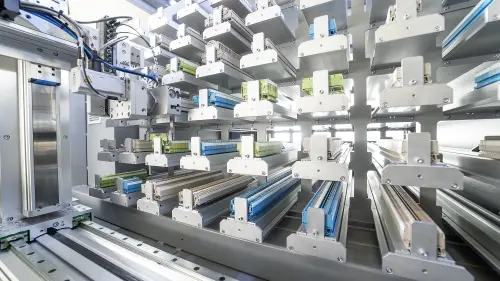

Maximum flexibility

The universal magazines make it possible to equip them with different components. This ensures maximum flexibility in operation. The machine has a total of 48 magazine places for components and 20 places for deflected mounting rails.

Matching assortment

With Weidmüller's standard markers, a suitable portfolio of the Klippon® Connect A series of pre-loaded markers is available. In combination with the Klippon® Automated RailLaser, the full optimisation potential can be realised.

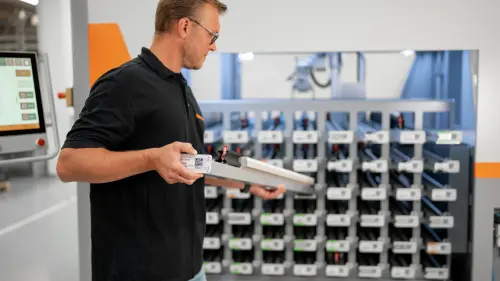

Optimised handling

Due to the large capacity of the magazines, filling processes are reduced to a minimum and opening quantities are avoided. Furthermore, the magazines enable a firm hold of the individual components already during the filling.

Next level in automated rail assembly

Klippon® Automated RailCutter

Highlight

Automatically, quickly and precisely cut mounting rails to size

Klippon® Automated RailCutter

Control cabinet builders have to match mounting rails precisely to the enclosure housing. The Klippon® Automated RailCutter cuts mounting rails to size and labels them automatically. The RailCutter draws the necessary data from eCAD or from the WMC; it does not need to be operated manually. The cut is fast and precise. The RailCutter is an extension of the Klippon® Automated RailAssembler and the only fully automatic machine that cuts mounting rails to size.

Cost-efficient in the long term
High flexibility & data consistency
Conserving raw materials
Maximum transparency
Minimised set-up times

Klippon® Automated RailCutter

Cost-efficient in the long term

Automated mounting rail cutting increases efficiency. The electrically driven shears minimise the reject and error rate. Users can also easily scale the production volume thanks to the automated system.

Maximum transparency

The Railcutter marks mounting rails with a needle embossing on the back. This means that they can be identified at any time. Subsequent processes - such as the processing of a mounting rail by the Klippon® Automated RailLaser - can also be tracked.

Minimised set-up times

The RailCutter processes mounting rails with a length of 2m automatically and can store up to 88m of mounting rails. DIN rails to TS 35 / 7.5 and TS 35 / 15 are suitable for the RailCutter.

Klippon® Automated RailAssembler as part of workplace solutions

We support panel builders around the world and understand the challenges they face. We therefore provide you with sophisticated products and solutions of excellent quality for every step in panel building. This is how we create added value for you and your customers. Take advantage of our know how.

Learn more about our Workplace Solutions

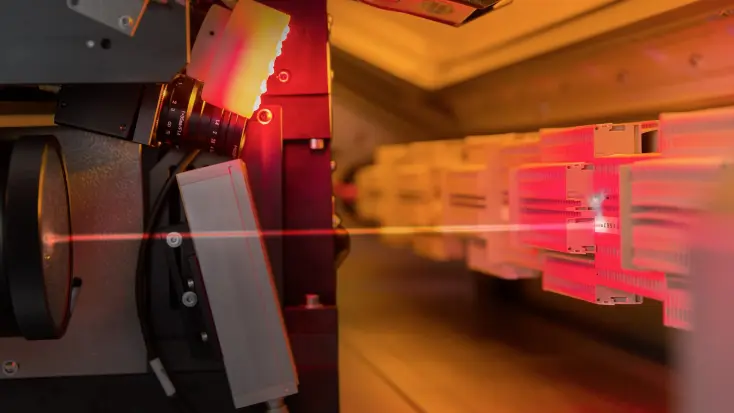

Klippon® Automated RailLaser

Fast high-precision marking

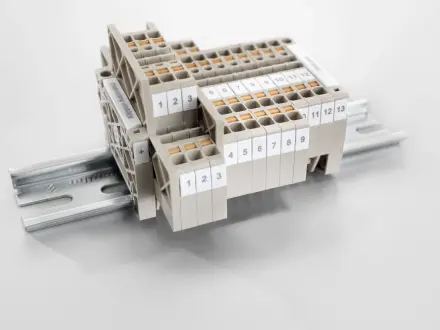

In combination with the Weidmüller Configurator (WMC) software, the Klippon® Automated RailLaser enables fully automatic marking of pre-assembled terminal strips. The use of terminal blocks with markers already attached eliminates the need to separate, assign and mount individual markers. This allows time savings of up to 90% in marking processes. The laser marking of the terminal strips also meets the highest demands on marking quality.

Gain a competitive edge with innovative technology

Highest performance
Robust marking
Maximum flexibility
Matching assortment
Universal labelling options
Reliable quality

More information

Perfect complements

Klippon® Connect A-Series

In addition to the marking process, equipping the terminal blocks with markers is also very time-consuming. That is why we already carried out this step for you. Use our Weidmüller standard markers, which are pre-equipped with Klippon® Connect A-Series terminal blocks. You benefit from the full optimisation potential of the Klippon® Automated RailLaser.Our Klippon® Connect A range has been designed to be ready-to-robot. Special features such as the gripper-optimised outer contours ensure safe handling with a robot.
